Skid Steer 14-pin to 14-pin Electrical Adapter | Skid Steer Genius
$285.00
Most attachments work across brands—just match connectors with the right adapter. Check your machine’s controls before choosing.

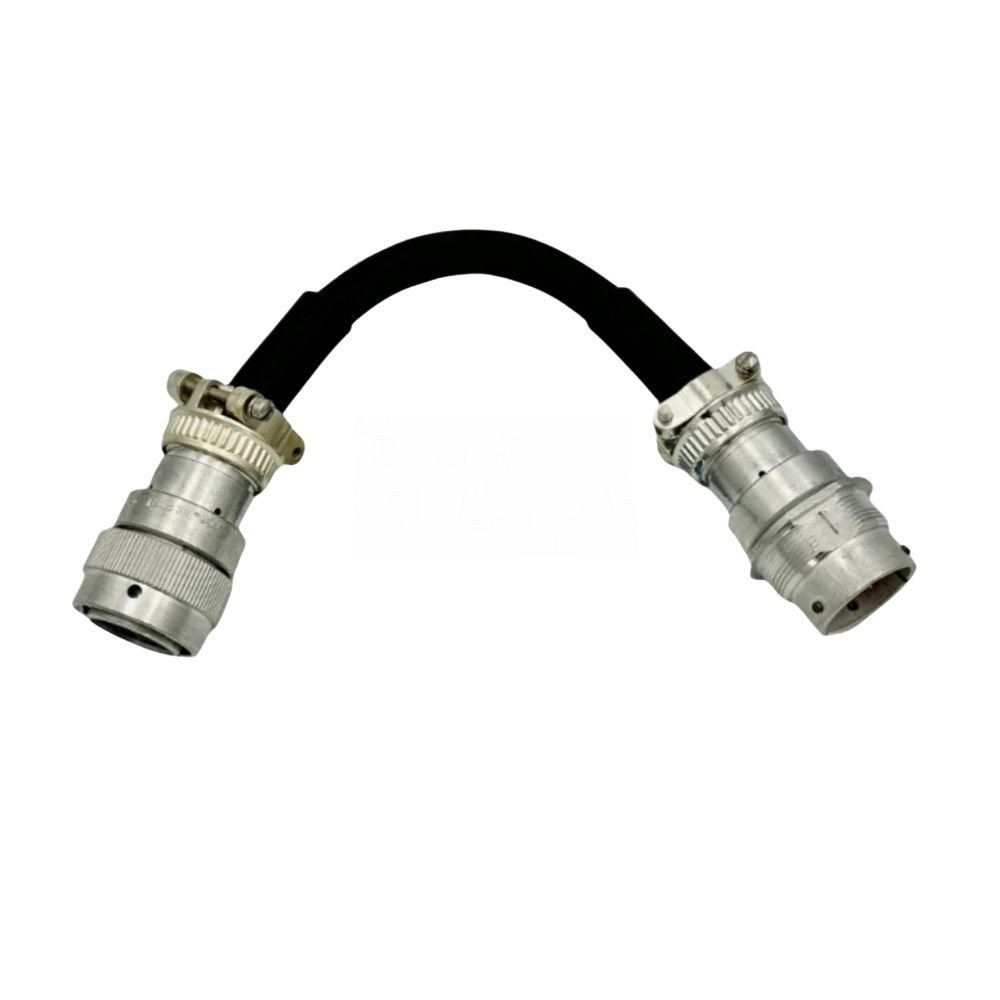

Skid Steer Genius 14-pin to 14-pin Electrical Adapter for Skid Steers
Description
Some machine manufacturers try to make you think you can only buy their attachments by changing the wiring. In reality, most of them use the same attachment suppliers and simply install a different harness. In most cases, adapting is just a matter of matching similar connectors and re-pinning them to line up. The main exception is Bobcat, which in 2000 introduced CAN controllers that required attachments to include a computer. By 2010, Decoders were developed to translate those data signals back into standard 12-volt controls.

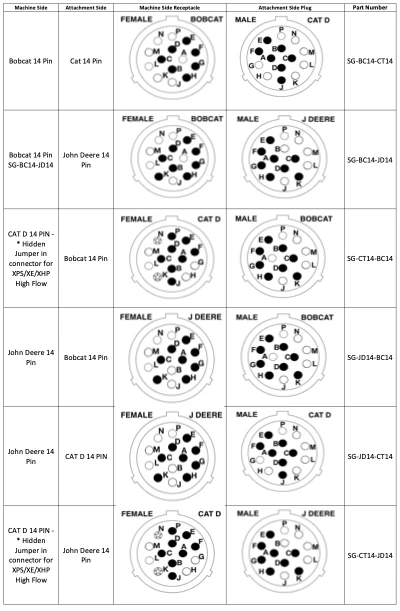

To keep things simple, adapters follow a clear naming system. For example:
BC14-CT14
- BC14 = Bobcat 14-pin machine side (plugs into the skid steer)
- CT14 = CAT D series 14-pin attachment side
Bobcat introduced the 14-pin format, and many other brands use it as well—Case, Gehl, Kubota, JCB/Volvo, Mustang, Takeuchi, New Holland, Manitou, Yanmar, Develon, Hyundai, and Wacker Neuson.
One thing to watch for: not all machines are built with every control button. Even with the right adapter, you may not have enough controls available to run certain attachments. For example, older Cat and Kubota machines only included 2 controls. Some models come with 4 but won’t offer 6 unless you order a high-flow version or request the extra controls. This usually only becomes obvious when trying to use the 5th or 6th function.
Features
- Multiple machine capabilities
- Male and Female counterparts
What’s Included
- Skid Steer 14-pin Electrical Adapter
| Brand Connection |
John Deere 14 Pin to Cat D ,John Deere 14 Pin to Bobcat 14 Pin ,John Deere 14 Pin to Cat ,Terex & ASV 8 Pin ,Deutsch HD 14 Pin Bobcat 14 Pin to CAT (ABC-Series) ,Terex & ASV 8 Pin ,Deutsch HD 14 Pin Bobcat 14 Pin to Cat D-Series 14 Pin ,CAT (ABC-Series) ,Terex & ASV 8 Pin to Bobcat 14 Pin ,Cat ,Terex & ASV 8 Pin to Cat 14 Pin D Series ,CAT D-Series 14 Pin to Cat 8 Pin (ABC-Series) ,Terex & ASV ,CAT D-Series 14 Pin to John Deere 14 Pin ,CAT D-Series 14 Pin to Bobcat 14 Pin |
|---|
