Stanley Excavator Mounted Vibratory Plate Compactor | HSX3 – HSX6 – HSX11

An extremely powerful attachment to match the power of your Mini or Compact Excavator, the Stanley line of Vibratory Plate Compactors deliver maximum efficiency and force, able to perform in the most demanding of settings. These attachments are truly extreme-duty, delivering optimal centrifugal force and vibrations per minute. Available in four models, with mounting options for almost any machine, and compatible with a wide range of carrier sizes.

Select Product Options Above

• Select Plate Compactor Model
• Base price is for Concrete Breaker Unit without any mounting
• Please Include your machine’s make and model during checkout
• Additional cost may incur for certain machines
• Breaker does not include hoses or couplers
• Breaker does not include pins or bushings

Machine Compatibility

Stanley Excavator Mounted Vibratory Plate Compactors can be set-up to fit almost any Mini of Compact Excavator. Custom mounting brackets can be special ordered or made to OEM specification. Bolt on Mounting brackets are also available. Combination brackets are also available to connect units to your Skid Steer Loader. Please give us a call at 1-866-966-2538 to discuss mounting options and learn more about pricing and availability.

Features

• High level of centrifugal force
• Flat top mounting offer simplified compatibility with a wide range of machines and configurations
• Simplify compacting operations with the power and reach of your machine
• Eliminate the need for walk-behind units or manpower in a trench
• Hydraulic hoses protected by durable nylon sleeve
• Hose movement minimized to reduce interference
• Four heavy-duty, industrial grade shock mounts
• Vibration is distributed evenly
• Consistent force delivered for maximum efficiency

HSX3 Specifications | Carrier Weight Class: 2.5 ~ 6.5 Tons

• Vibrations per Minute: 2100
• Centrifugal Force: 3400 lbs.
• Hydraulic Pressure: 1600-2000 PSI
• Flow Range: 12-25 GPM
• System Relief: 2500 PSI
• Back Pressure (Max): 250 PSI

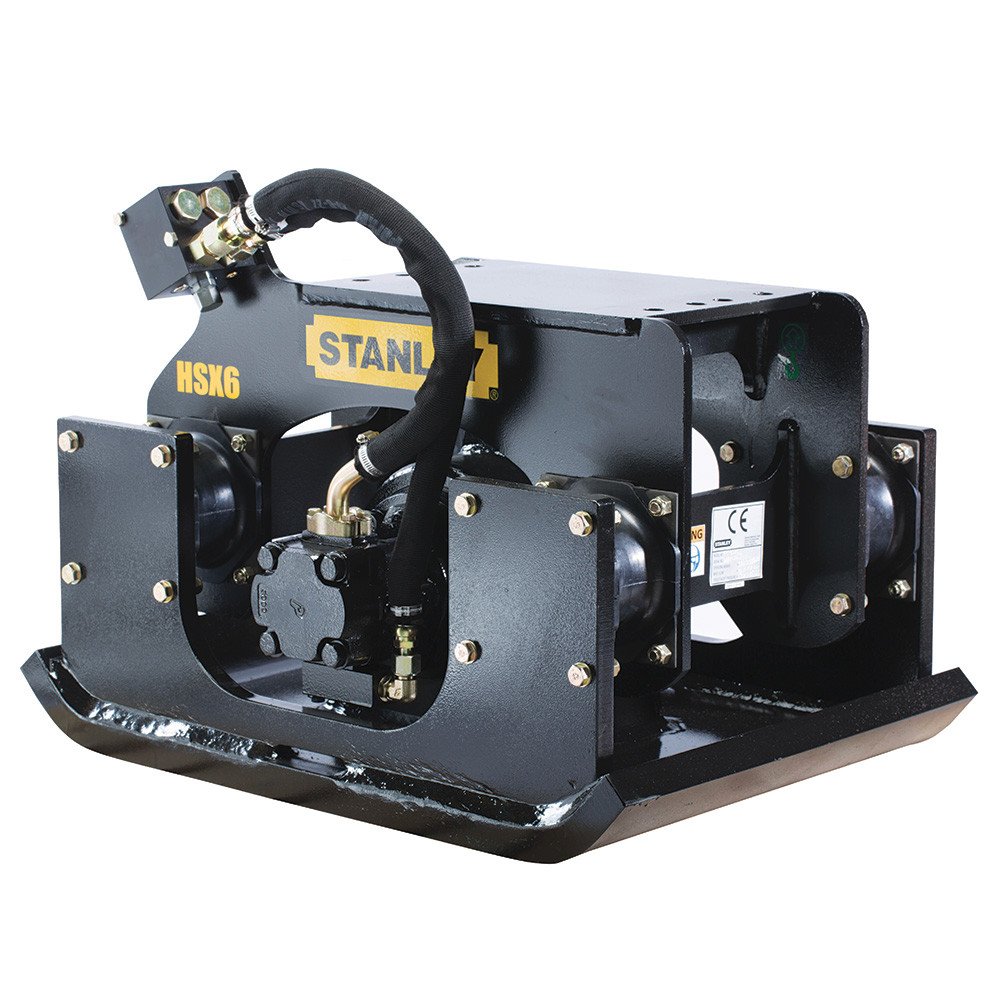

HSX6 Specifications | Carrier Weight Class: 4.5 ~ 15 Tons

• Vibrations per Minute: 2000
• Centrifugal Force: 6400 lbs.
• Hydraulic Pressure: 1800-2000 PSI
• Flow Range: 12-25 GPM
• System Relief: 2500 PSI
• Back Pressure (Max): 250 PSI

HSX11 Specifications | Carrier Weight Class: 8 ~ 27.5 Tons

• Vibrations per Minute: 2000
• Centrifugal Force: 11350 lbs.
• Hydraulic Pressure: 1800-2150 PSI
• Flow Range: 28-60 GPM
• System Relief: 2500 PSI
• Back Pressure (Max): 250 PSI
