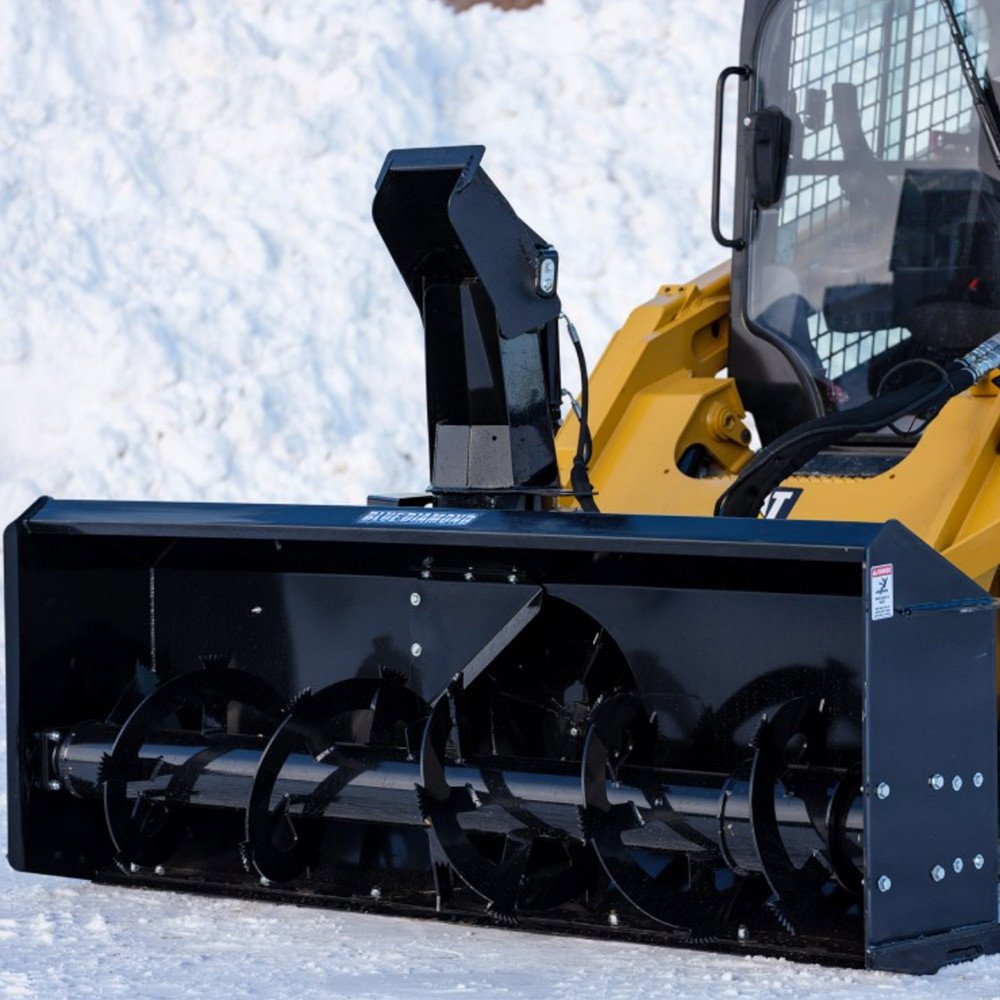

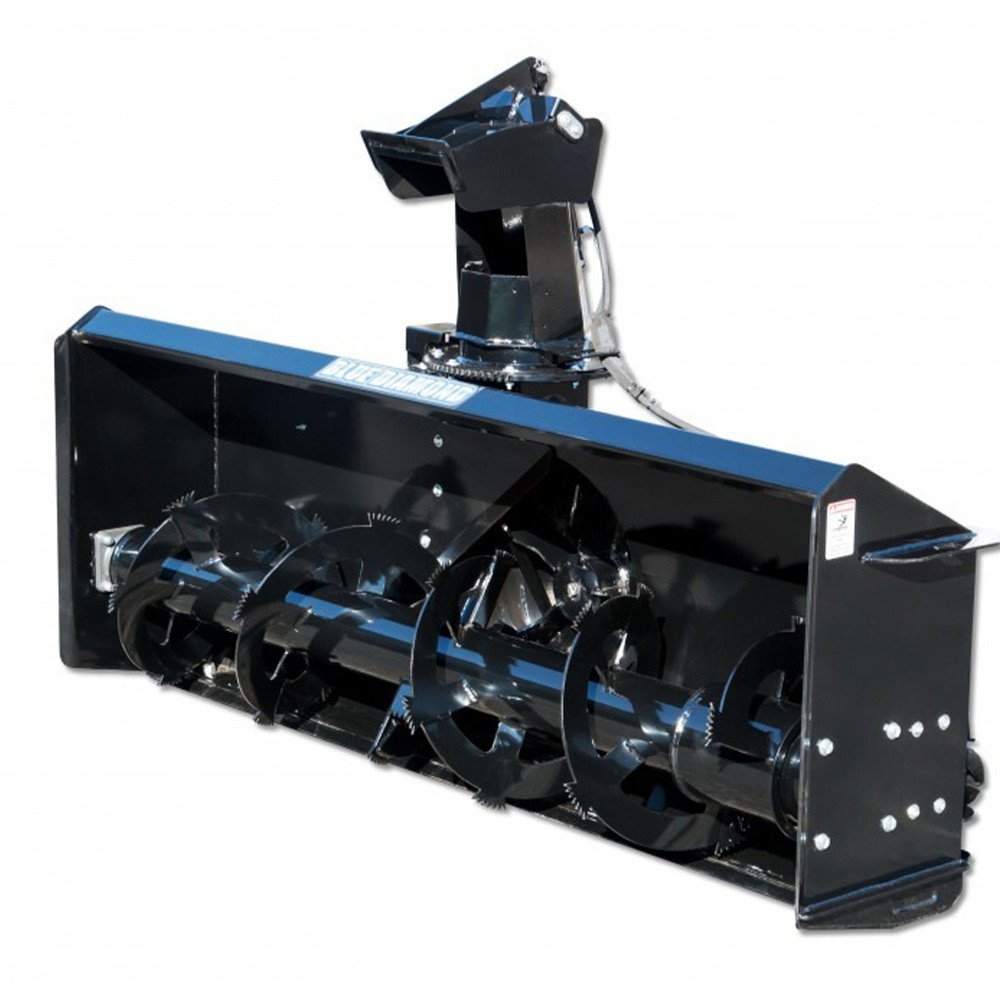

Blue Diamond Extreme Duty Snow Blower
Description

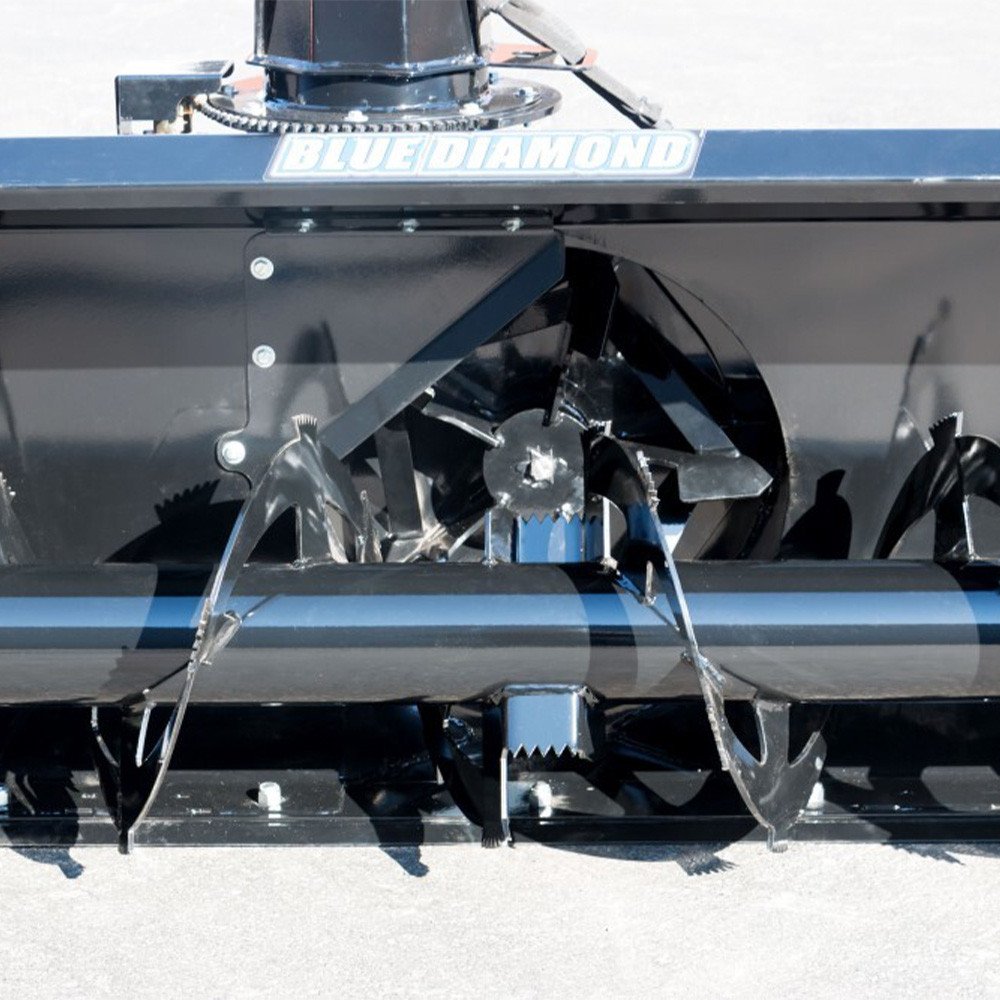

The Blue Diamond Extreme Duty Snow Blower is a high-performance attachment made for snow removal in severe weather conditions. Inside is an aggressive toothed 16″ Auger with 2 ¼ x ¼” Ribbon Flighting that helps to breaks up and move snow. The ribbon flighting cuts into harden, icy snow to get it out of the way quicker.
The 22″ Diameter, 6 1/2″ Deep 4-blade fan give the attachment airflow to continuously propel snow through the chute. This blower is designed with a high pressure bypass relief system that eliminates the need for shear pins which protects the blower from damage caused by potential obstructions. The direct drive system for both the auger and fan boosts the reliability of the blower and provides smooth and efficient power transfer, for better overall performance.
The hydraulic rotary chute allows for precise snow discharge direction, with a wide 270° range. The 7” opening ensures that large volumes of snow can be expelled quickly and efficiently. The hydraulic chute deflector provides additional control over the snow discharge, so you can adjust the distance and direction of the thrown snow.
Blue Diamond Snow Blowers are made with a 7-gauge steel housing that protects the internal components of the blower and a 10-gauge steel shell that protects the blower from the impacts of heavy snow removal tasks. Plus, reinforced corners provide even more strength and stability to prevent dents and other damage.
Features
- Aggressive toothed 16″ auger with 2 ¼ x ¼” ribbon flighting
- 4 blade fan, 22″ diameter, 6 1/2″ deep
- No shear pins; high pressure bypass relief system
- No chains; direct drive auger and fan
- 270◦ hydraulic rotary chute with 7” opening
- Hydraulic chute deflector
- Adjustable hardened steel skid shoes
- 7 gauge steel fan housing
- 10 gauge steel blower shell
- 1/4″ end plates
- High strength corner bracing
- Heavy-duty polyurethane idler wheels
- Bolt-on grader cutting edge
What’s Included?
- Extreme Duty Snow Blower

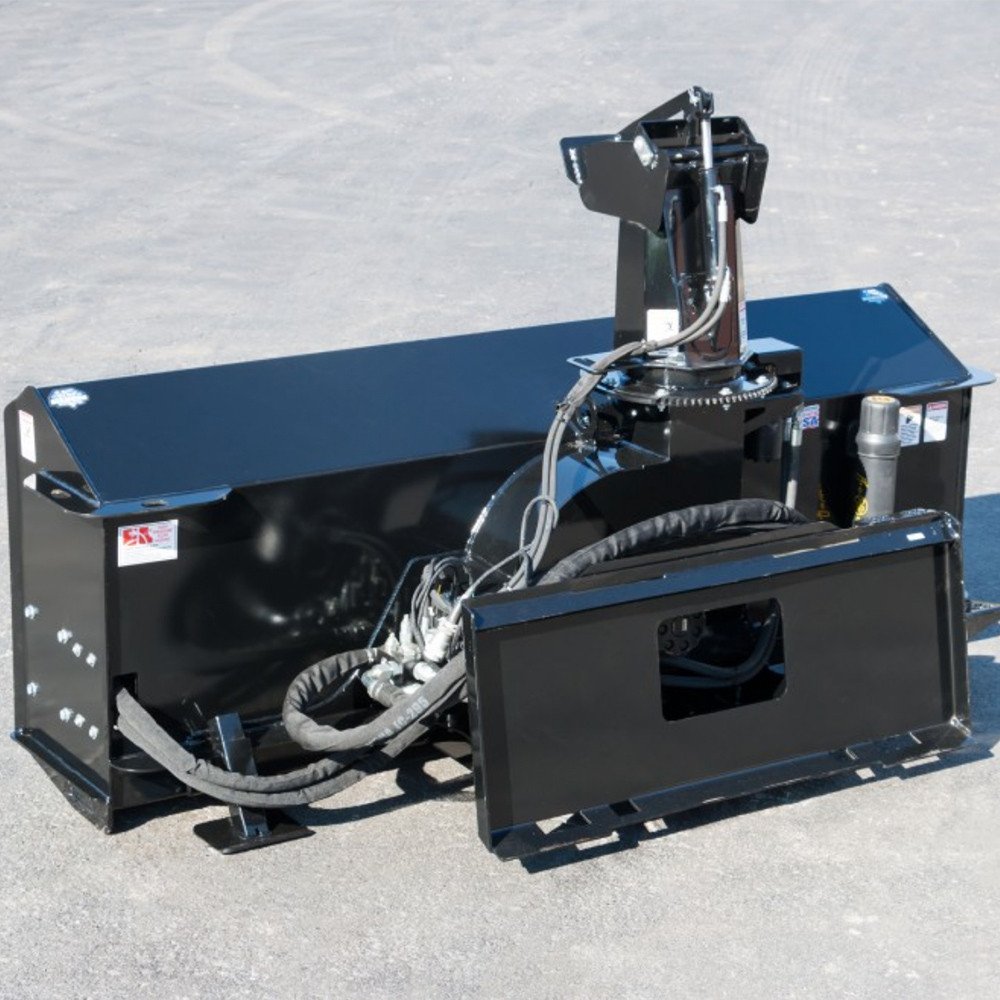

- Universal skid steer mounting plate

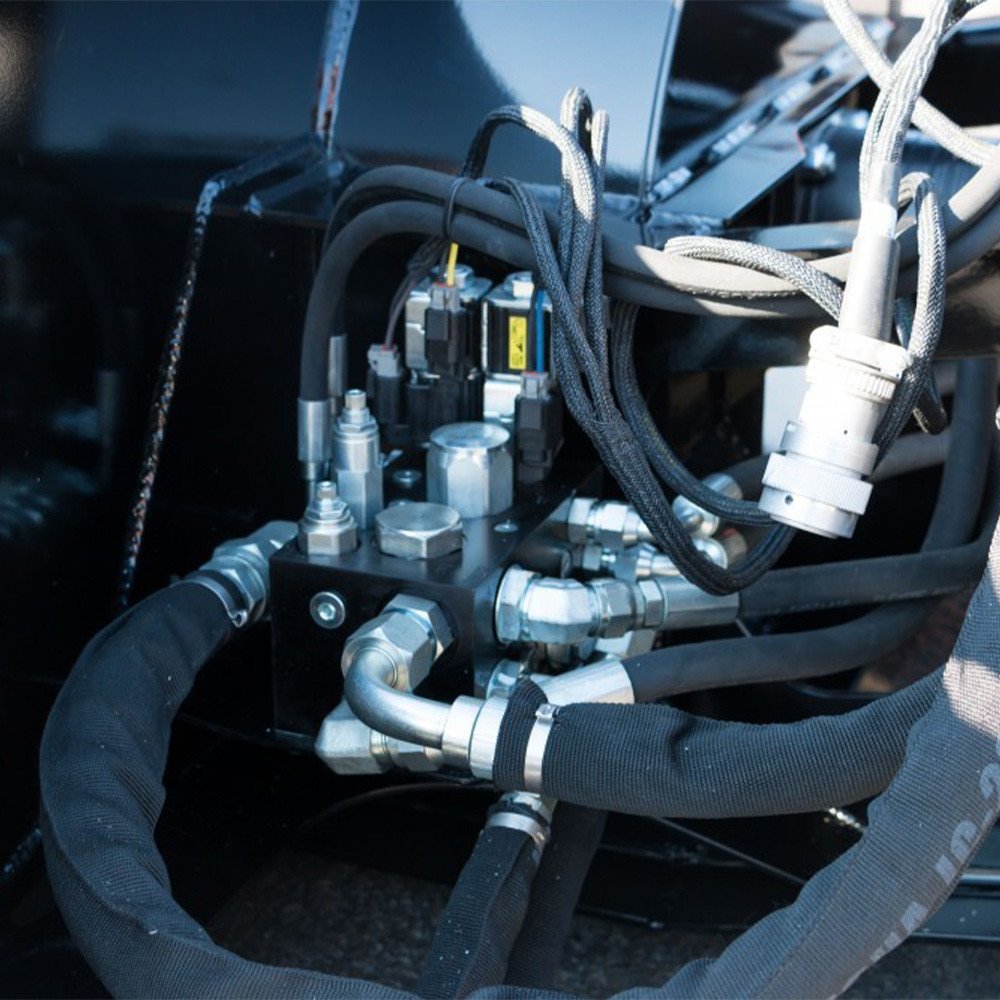

- Hydraulic hoses
- Flat Faced couplers
- Owner’s manual
