Shields Polycarbonate Door for New Holland Skid Steers

Description

The New Holland Polycarbonate Door from Shields is an excellent replacement for broken OEM glass skid steer doors (see compatible models below). These doors are NOT rated for forestry applications or any application where operator protection is needed. This door includes windshield only, and is designed to fit existing frame and mounting holes as standard OEM glass. Shields doors feature milled edges for transferring the door seal with ease. You can find forestry rated doors and doors with frames in our Forestry Doors and Cab Enclosures (full assemblies) categories.

This skid steer door is designed to improve operator comfort, reducing noise and dust entering the cab, retaining heat during the winter and keeping you cool during the summer. It even provides protection from UV rays. Shields doors are post coated with Shields SUPERCOAT™ which provides abrasion resistance. However, using wipers can eventually cause scratching when grit/dirt gets caught on the wiper.

Hardware, Seal, and Latches/Handles not included. This is not the same product as the New Holland Brand Forestry Package.

Thickness/Rating

Neither of these thicknesses are rated for applications where operator protection is needed. See our Forestry Doors category for heavy duty doors.

1/4″ Polycarbonate

• Designed for replacement of OEM glass
• NOT rated for demolition, SSL Brush Cutters, or for wood processors
• 1/4″ Doors are FLEXIBLE, so if visible flex/wobble will bother you, size up to 3/8″ Door

3/8″ Polycarbonate

• Designed for replacement of OEM glass
• NOT rated for demolition, SSL Brush Cutters, or for wood processors.
• Some operators will opt for the 3/8″ for grass mowing and other applications where light impact on the door is possible. This door is stronger than the 1/4″ but is not rated to stop flying debris.

Mounting Details

The New Holland Polycarbonate Door is designed to be a direct replacement for your standard OEM door and features the same mounting and hardware holes. It uses your existing OEM hardware for installation and replacement of your existing door. Purchase of this door does not include mounting hardware or seal. If replacing a 1/4″ or less thickness OEM door with 1/2″ polycarbonate, longer bolts may be required for optimal installation. Please give us a call for details.

Compatible Machine Models

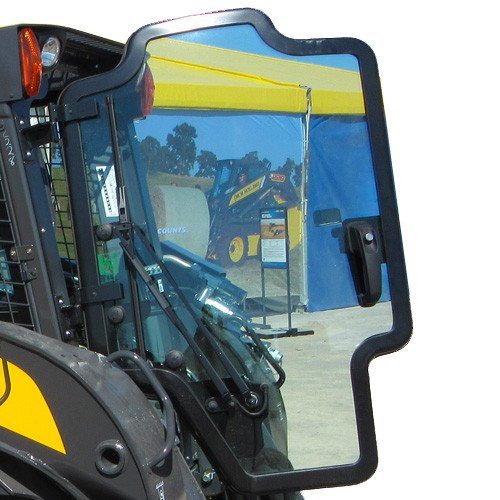

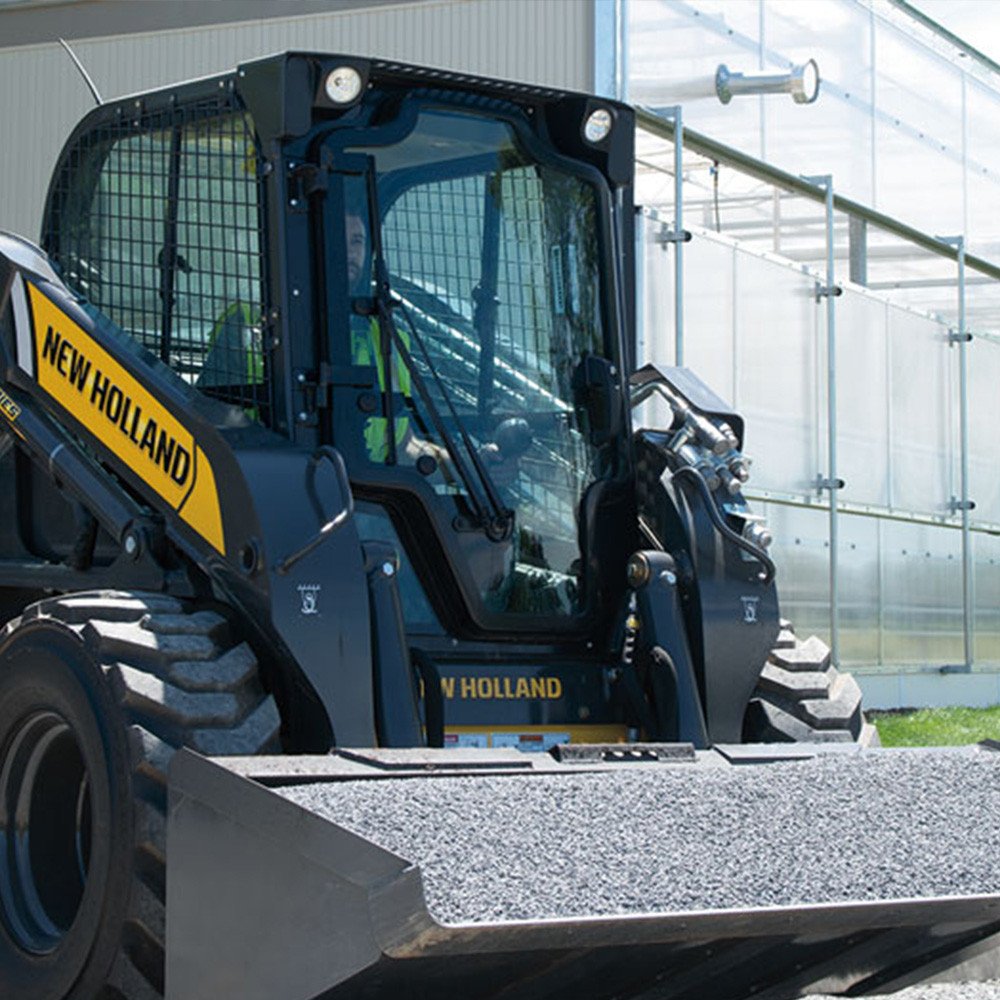

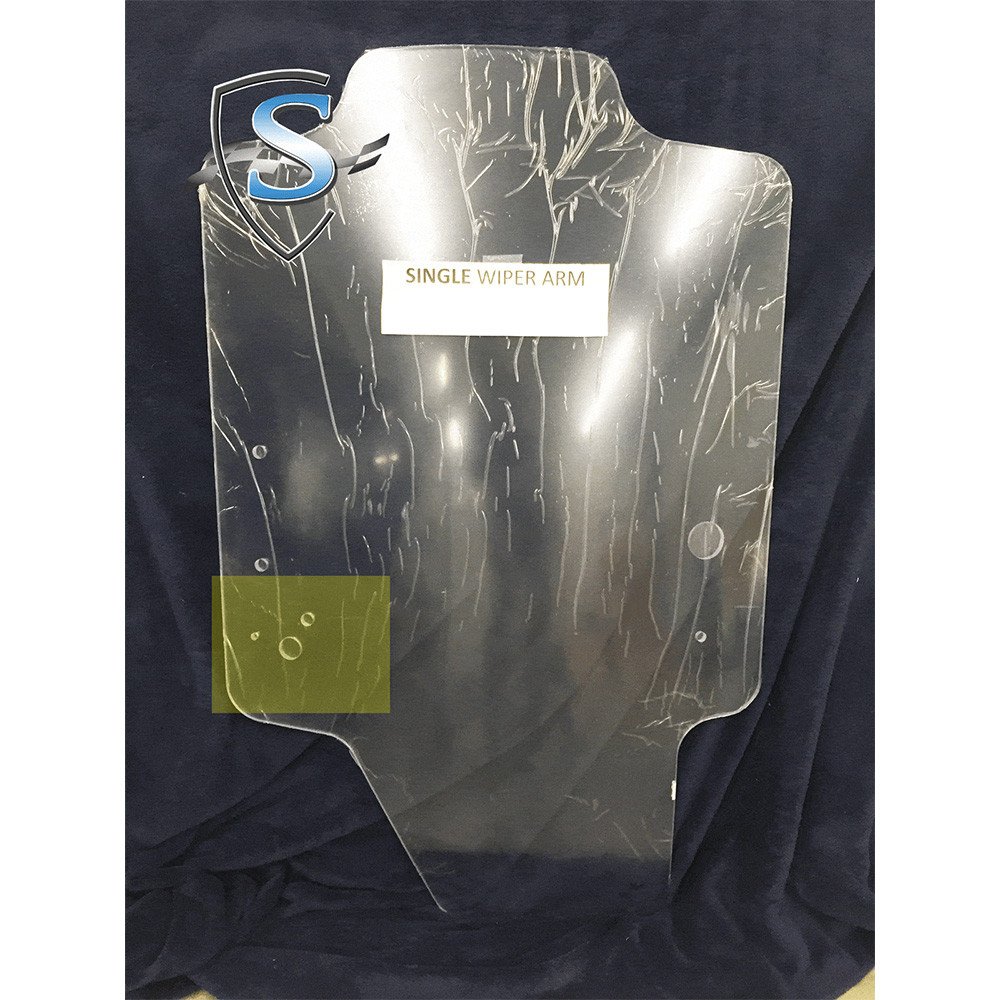

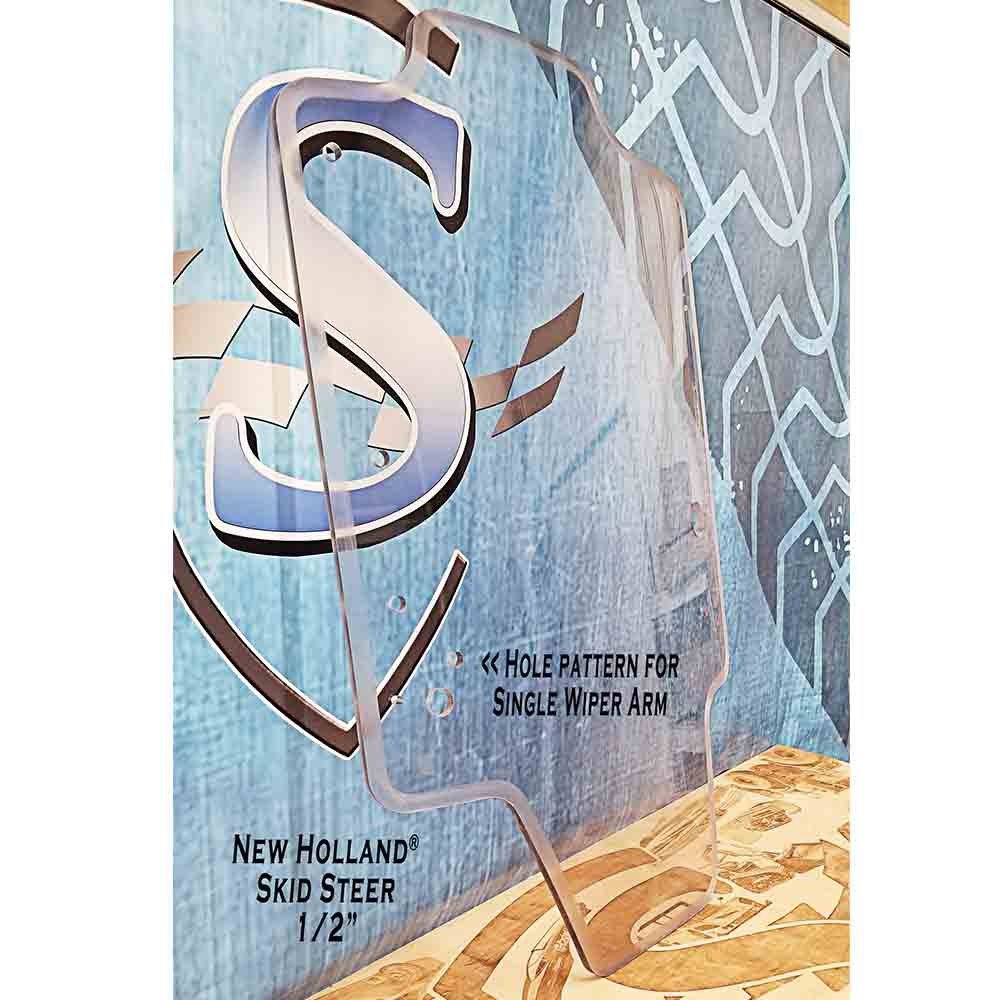

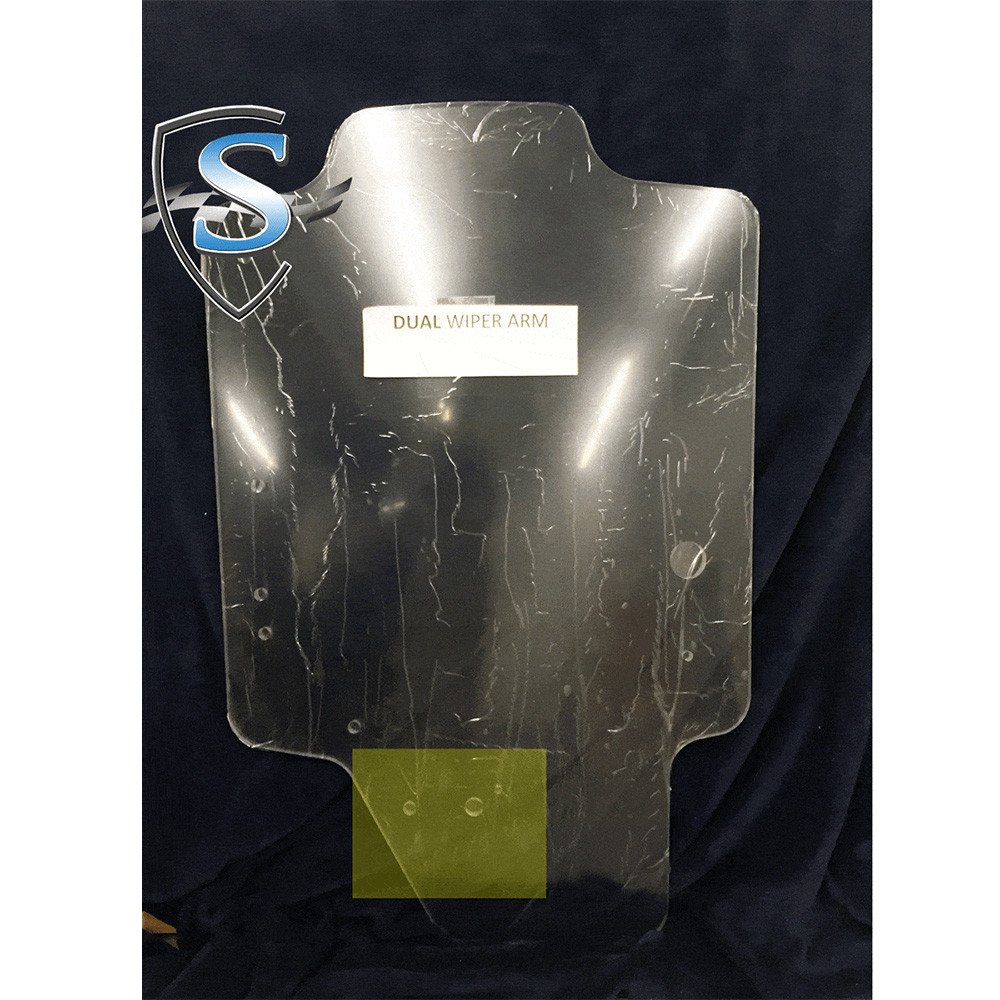

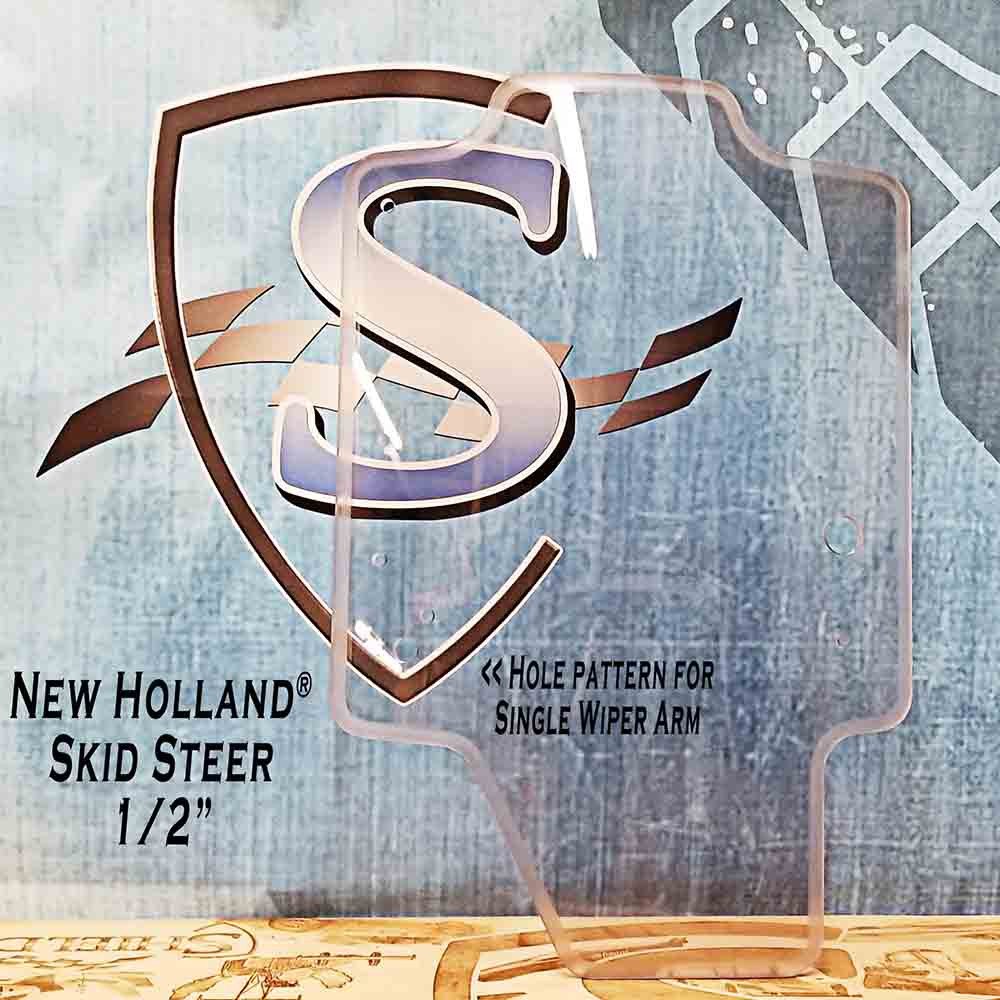

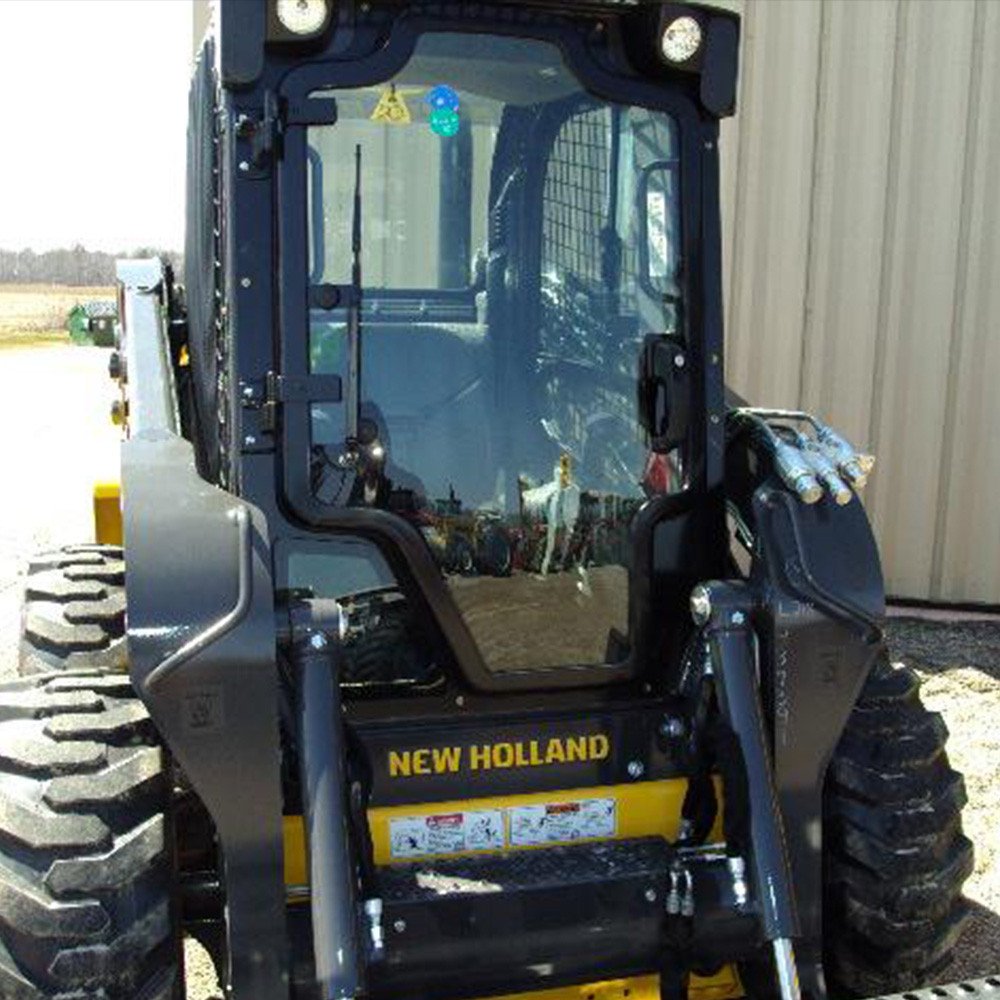

The best way to tell which door you need is by looking at your door’s wiper arm. The Dual Wiper arm is a larger wiper and it is attached lower on the door, in the lower section where the door is narrow. It also has two arms that hold the wiper blade (this can be seen in the 1st, 3r, and 4th photos, or by selecting the dual wiper option). The Single Wiper Arm is mounted slightly higher and to the left when looking at the door from outside. It can be seen in the 2nd photo or by selecting the single wiper arm option.

• Single Arm: Feb 1st 2013 and any prior year: L213 L215 L218 L220 L223 L225 L230 C227 C232 C238

• Replaces OEM Glass: 84344565

• Dual Arm: 2013- After: L213 L215 L218 L220 L223 L225 L230 C227 C232 C238 L313 L316 L318 L320 L321 L328 L334 C332 C334 C327 C337 C345

• Replaces OEM Glass: 84344565 & 47405930

• Deluxe Cab: C175 C185 C190 L160 L175 L180 L185 L190 LS160 LS185B LS190 LS190.B LT185.B LT195

• Replaces OEM Glass: 87635930

Are you replacing OEM polycarbonate? – most of our doors are for replacing OEM glass, and if you are replacing OEM polycarbonate for this model, please give us a call before ordering.

Features

• Available for New Holland L Series and New Holland C Series
• 1/4″ and 3/8″ thick polycarbonate
• Clear Lexan/Polycarbonate material is impact-resistant
• Increased durability
• Increases operator safety
• Easily replaces OEM factory glass
• Super-coated on both sides for optimal abrasion-resistance
• Duplicates OEM mounting holes
• 1/2 the weight of glass
• 250 times stronger than glass
• Noise reducing
• Increases light transmission and visibility
• Decreased summer heat gain
• Reduced winter heat loss
• Hardware not included

What’s Included?

• Polycarbonate replacement door
