Plug and Play 14 Pin Kit with 2 Output | Skid Steer Genius
$265.00
This Plug and Play 14 pin kit is used to connect skid steer to external control harness on attachments with 2 Fasse control valves. Use on parent machines with factory installed 14 Pin Male Electrical connectors

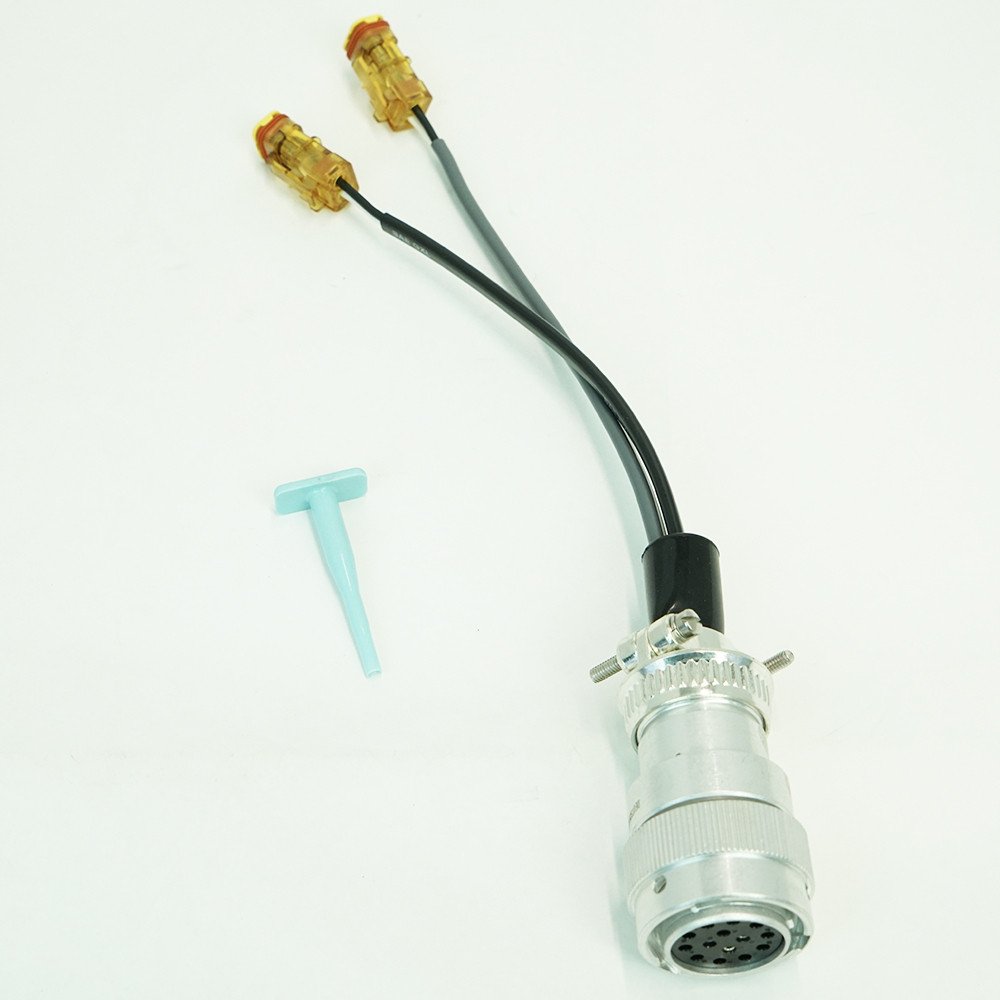

Skid Steer Genius Plug and Play 14 Pin Kit – 2 Output
Description
Use to connect skid steer to external control harness on attachments with up to 2 control valves. Use on parent machines with factory installed 14 Pin Male Electrical connectors
Comes pre-wired for machines with B ground pin and C+D & E+F power pins.
ATTENTION: John Deere users will need to configure ground pin to A pin using the included spare ground pin. See video https://youtu.be/b4qeifh6xGg?si=k7TEWKjjzwFGe4IR
Note: JOHN DEERE P SERIES: You will need to remove two of the pins to operate properly. We jumper C to E and D to F to allow choice of controls but the new P models sense the connection as a short and shut the hydraulics off. Remove pin C or E, and remove D or F with the included tool and this will fix the issue for the P series.
Features

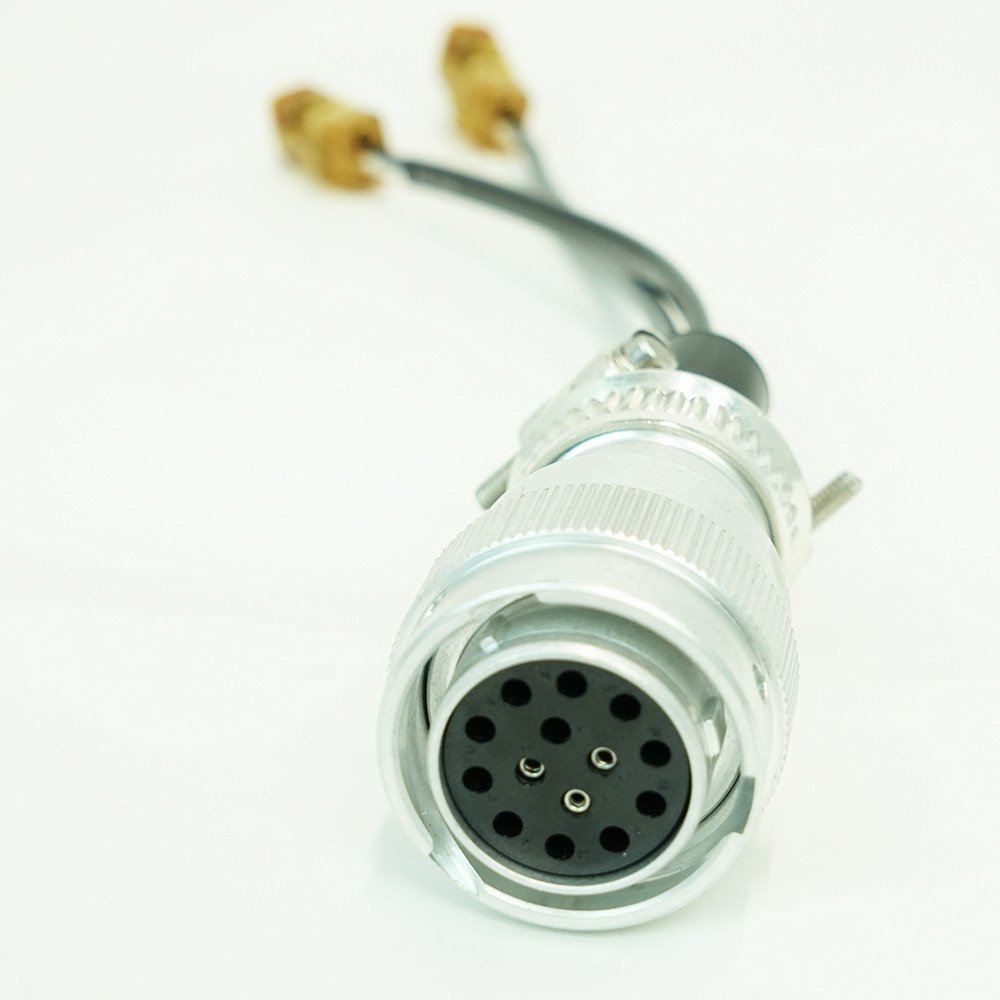

- Machine side connector – male
- These kits are made for double solenoid attachments

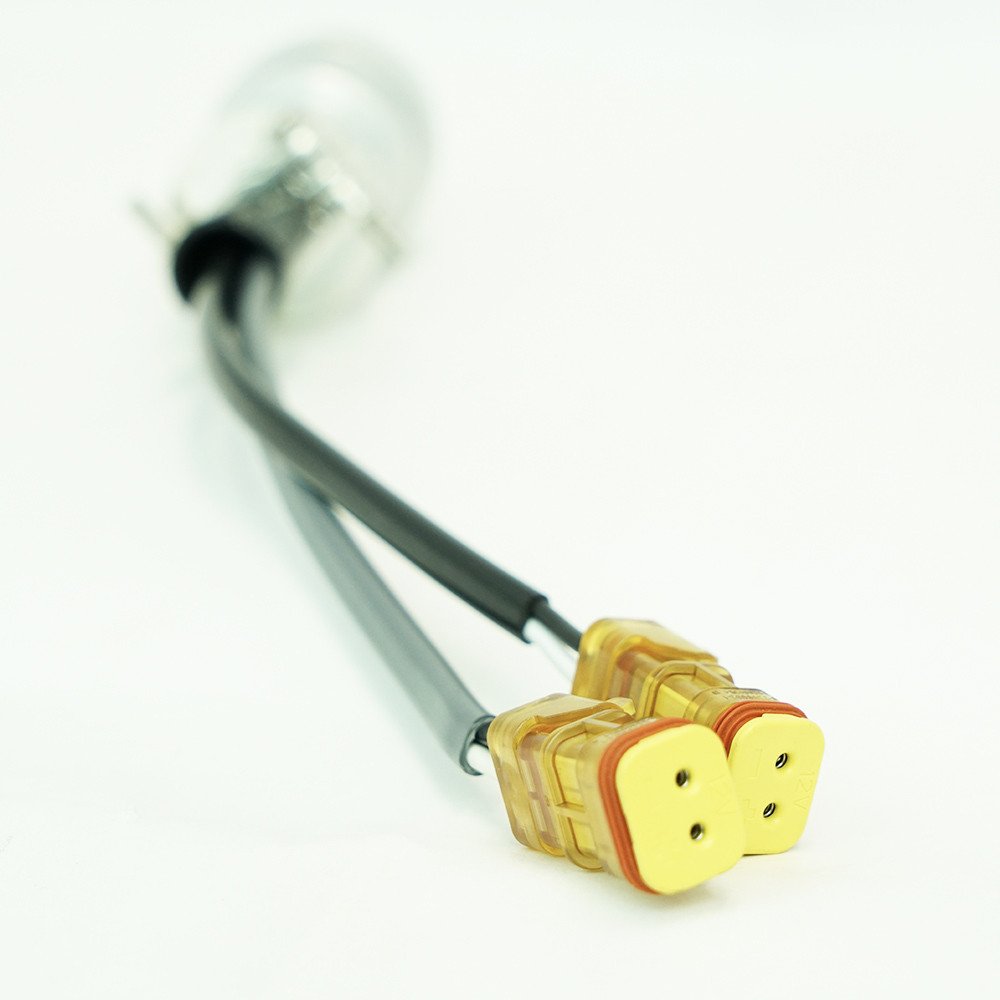

- Deutsch – 14 pin – With 2 x 2 Pin Deutsch output
What’s Included?
- 2 x LED Male Deutsch Body
- 1 x 14 Pin Female Barel Top Cap and Seal/Strain Relief
- 2 x Pigtail wire w/Deutsch 2 pin connector
- Installation Tool
