Skid Steer Power Rake | Blue Diamond
Price range: $8,337.00 through $12,876.00
The Blue Diamond Power Rake takes power raking to the next level. Tackle simple soil conditioning and grading jobs with this light-duty attachment.

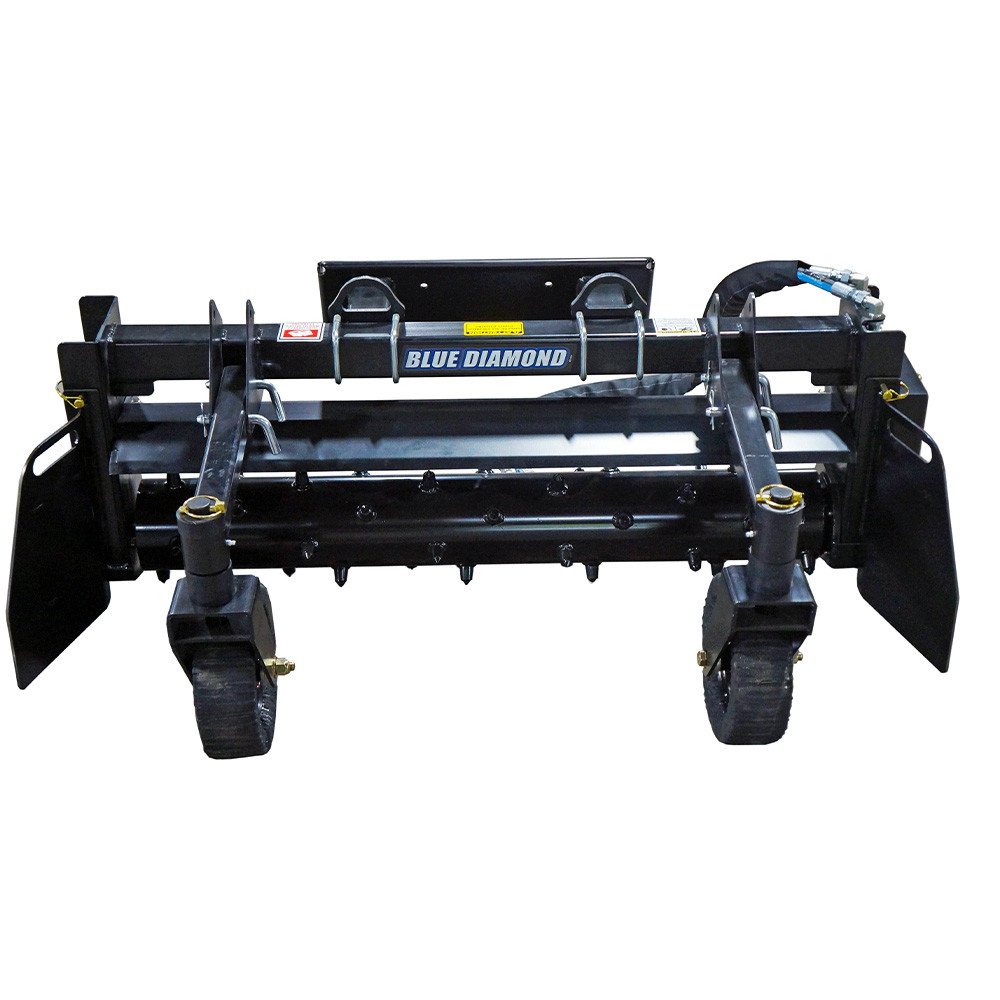

Blue Diamond Skid Steer Power Rake Attachment
Description
The Standard Duty Power Rake from Blue Diamond is a versatile option for preparing seedbeds, land leveling, and soil conditioning. The heavy-duty frame of this rake is built with high-strength steel to maintain the structural integrity during operation, so the attachment can handle tough conditions without bending.
The roller is propelled by a chain drive system, designed to transfer power efficiently from the skid steer to the rotating drum. This drive system provides smooth and reliable operation, even under heavy loads. The chain minimizes slippage and maintains a consistent power transfer, which is crucial for effective soil conditioning.

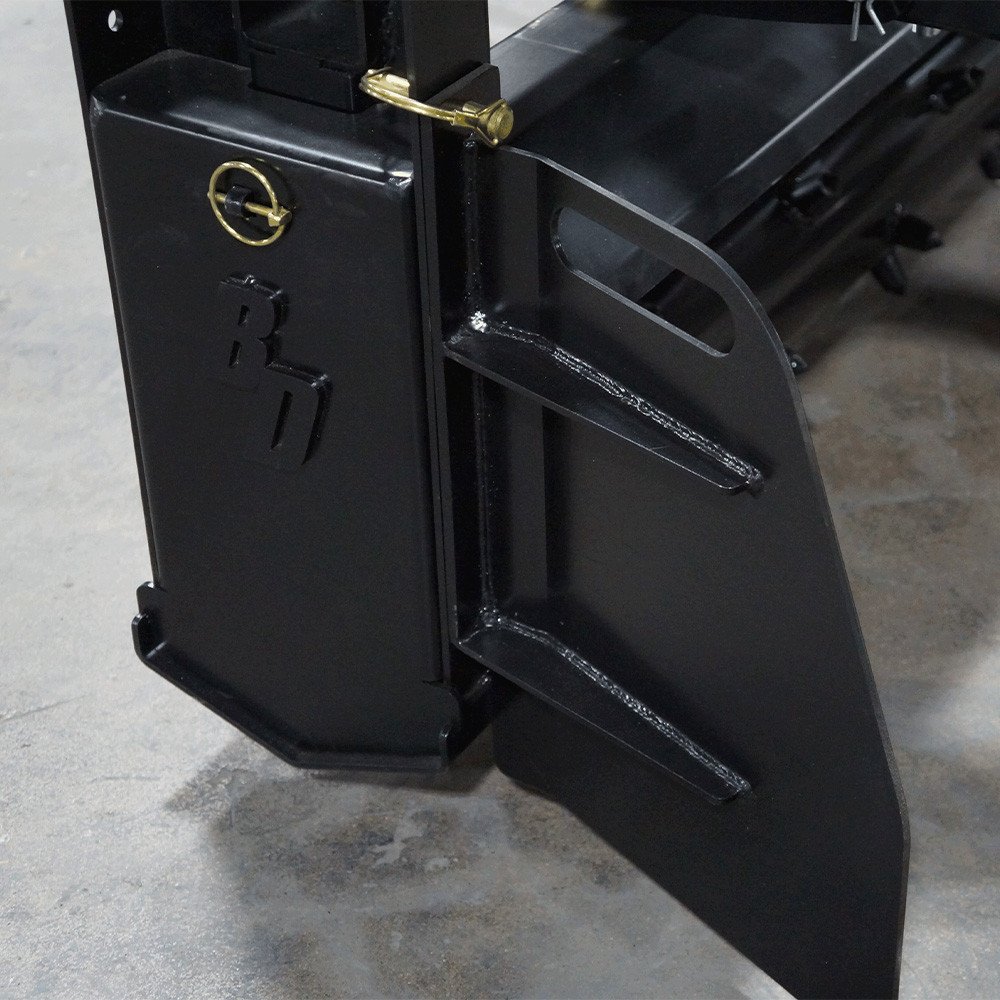

Adjustable end plates give you control over the depth of your raking and a hydraulic 5-point angling system pivots the attachment left or right so you can really tailor it to fit any job you’re doing. The floating hitch follows the contours of the ground to give you consistent contact with the surface, for a smooth, even finish. The floating hitch adapts to uneven terrain and prevents gouging for smooth, uniform soil conditioning.
The replaceable carbide teeth are highly resistant to wear and tear so they can break up hard soil, rocks, and debris effectively. Replacing these teeth is straightforward and simple, so you can swap them out without replacing the entire drum.
Features

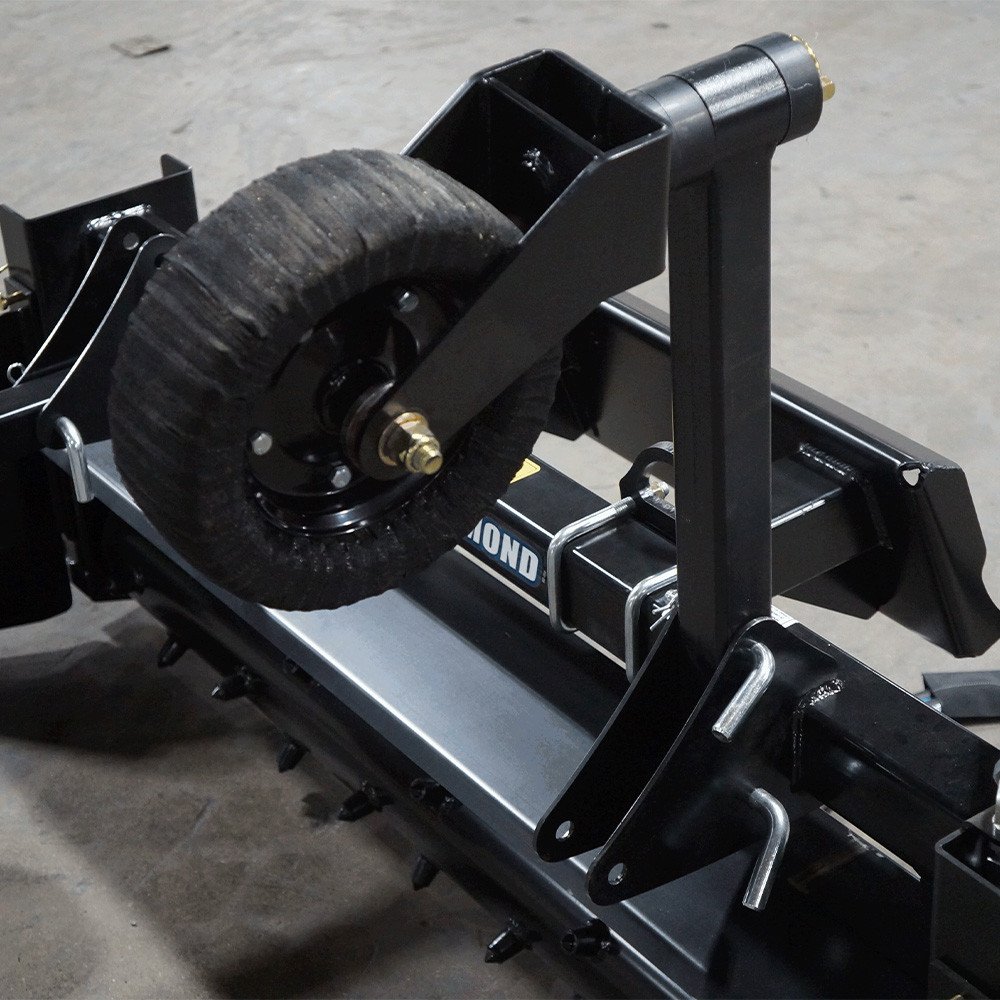

- Flip up wheels
- No-flat airless wheels
- 5/8″ greaseable axles on wheels
- 7″ diameter drum with 1.5″ teeth
- Overall width 12″ more than drum width
- 1.25″ spindles with adjustable height
- Bolt-on mount (can be switched for a different mini or full size skid steer mount)

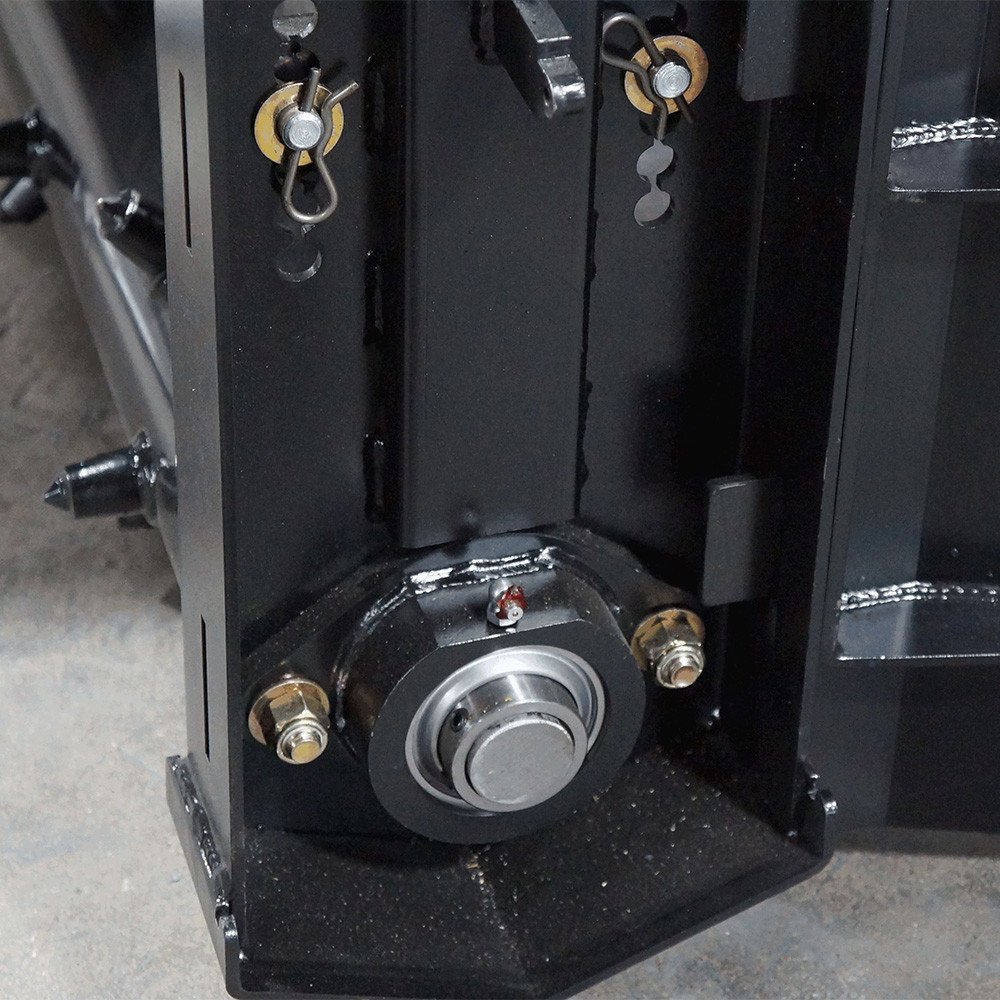

- Spindles on drum are 1 3/8″ diameter greaseable bearings
- Fixed carbide teeth
What’s Included?
- Skid Steer Power Rake Attachment
- Mounting Plate
- Hydraulic Hoses
- Flat Faced Couplers
- Owner’s Manual
| Model |
48" ,Fixed Angle ,48" ,Manual Angle ,48" ,Hydraulic Angle ,60" ,Fixed Angle ,60" ,Manual Angle ,60" ,Hydraulic Angle ,72" ,Fixed Angle ,72" ,Manual Angle ,72" ,Hydraulic Angle |
|---|
